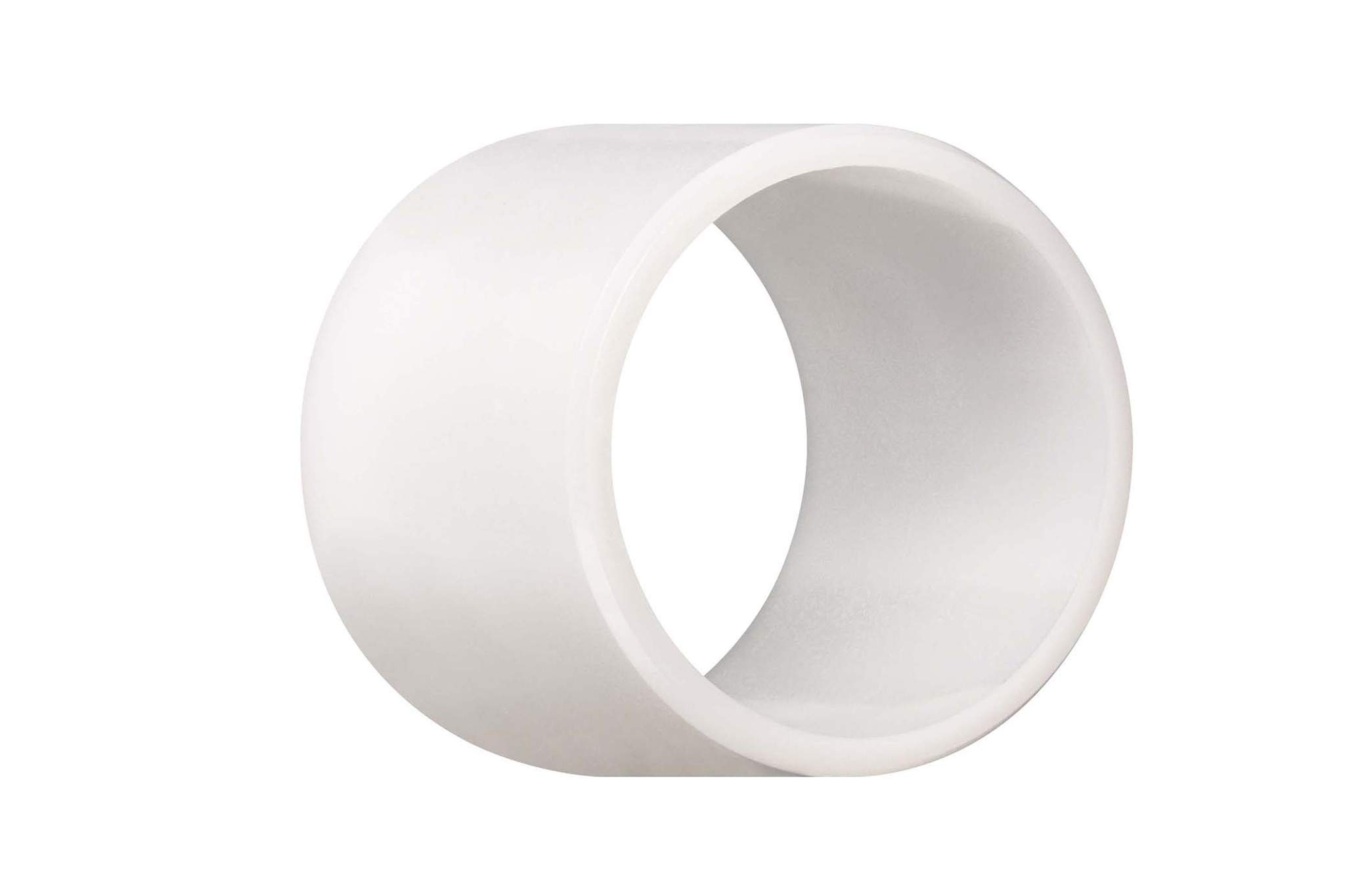

iglidur® A180, sleeve bearing, mm

The FDA-compliant all-rounder
iglidur® A180, sleeve bearing, mm
igus-icon-lupe
iglidur® A180, sleeve bearing, mm drawing
igus-icon-lupe
1 from 2
iglidur® A180, sleeve bearing, mm
iglidur® A180, sleeve bearing, mm drawing
  • Part number: A180SM-0608-10
  • Material: iglidur® A180
  • Shape: Shop sleeve bearings
  • Dimensions:
    • d1 6 mm
    • d2 8 mm
    • b1 10 mm
  • Adjust dimension
  • Manufacturing method: Injection moulding
  • Service life:

    Not available

    igus-icon-info-circle-gray
Material properties:
  • Low humidity absorption
  • High media resistance
  • Resistant to edge pressure
  • Resistant to shocks and impacts
  • Resistant to dirt and dust
  • FDA-compliant
  • EU 10/2011-compliant
Total price:

plus VAT and shipping charges

loading...
igus-icon-lieferzeit-dot
Ready for shipment within 24 hours
iglidur® A180 | The FDA-compliant all-rounder
Bearings made of iglidur® A180 are suitable for use in direct contact with food. They are therefore the ideal solution for bearing points on machines for the food and packaging industry, medical equipment manufacturing, small household appliances, etc. Even where wet cleaning or process-related contact with moist media is the order of the day, iglidur® A180 is characterised by minimal moisture absorption.

Typical application areas

Beverage industry
Food industry
Medical technology

You can find further possible applications here:
Industry solutions


When to use it?
  • When the bearings have direct contact with food
  • When FDA compliance is required
  • When a low noise level is required
  • When low moisture absorption is fundamental
When not to use it?


Use our filter options to find the right product for you

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® bearings depend on the material and wall thickness. Moisture absorption and thermal expansion are decisive for the material. Plain bearings with low moisture absorption can be installed with a small bearing clearance. The following applies to the wall thickness: The thicker the bearings, the greater the bearing clearance must be.
Test procedure

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only set with the corresponding tolerance after pressing into the housing bore. The press-fit interference can be up to 2% of the inner diameter. This ensures a secure press fit of the bearings. Axial or radial displacements in the housing are thus reliably avoided.
iglidur® - installation, bonding, machining
