iglidur® RW370-PF, 3D print filament

  • Flame-retardant, according to UL94-V0 and DIN EN 45545
  • Flexural strength 91MPa
  • High wear resistance
  • Can be processed with a high-temperature 3D printer
  • Max. application temperature: +170°C
3D printing service

3D printing service

Abrasion-resistant components made of high-performance polymers ready to ship from 24 hrs. Upload CAD model and order online here!
Product description
iglidur RW370-PF is an abrasion-resistant, high-temperature tribo-filament which was specifically developed for use in railway vehicles. As such, its fire retardant specifications conform to UL94-V0 and EN45545. In addition, it has the maximum mechanical strength of all tribo-filaments and a long-term temperature resistance of 170°C, which makes it the material of choice for high-temperature applications. Due to its high processing temperature of 350-360°C, as well as a mandatory build chamber temperature of min. 160°C, a high-temperature 3D printer is required for processing. The filament is very sensitive to moisture and should be stored in a drying container and actively dried on a regular basis. iglidur RW370 is also available as injection moulded and bar stock material.

When to use it?
  • When the application requires high temperature resistance
  • When the mechanical strength of the other tribo-filaments is not sufficient
  • When fire-retardant specifications are required
  • From prototype to series: the same material for 3D printing, bar stock and injection moulding
When not to use it?
  • When your existing 3D printer does not have a build chamber heater (→ iglidur i180-PF)
  • When very high wear resistance at high-temperature load is required (→ iglidur A350-PF)
Technical data
Downloads

Other solutions

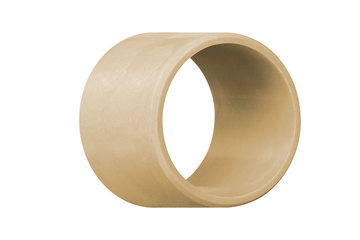

iglidur® RW370, sleeve bearing, mm
iglidur® RW370, sleeve bearing, mm

Complies with fire protection standard DIN EN 45545 HL3, R22/R23

Upon request

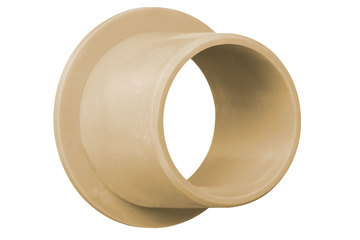

iglidur® RW370, sleeve bearing with flange, mm
