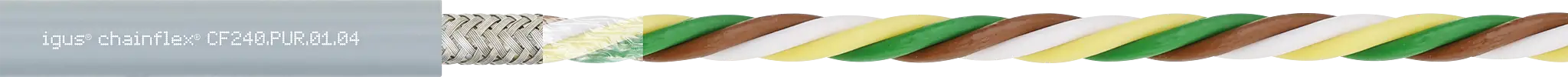

chainflex® CF240.PUR data cable

For medium duty applications
Outer jacket: PUR
Overall shield
Oil-resistant according to DIN EN 50363-10-2
Notch-resistant
Hydrolysis and microbe-resistant
Flame retardant
Halogen-free
Silicone-free
PVC-free
UV-resistant
chainflex® class: 4.4.3.1

chainflex® CASE available

SGD 35.15 / Pc.

Ready for shipment within 24 - 48 hours

chainflex® CF240.PUR data cable

Typical application areas

For medium duty use
Almost unlimited resistance to oil
Indoor and outdoor applications with average sun radiation
Unsupported travel distances and up to 50 m for gliding applications
Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas

Guaranteed lifetime according to guarantee conditions
More Information: chainflex® Guarantee

Double strokes*		5 million		7.5 million		10 million
Temperature,	Travel distance	R min. [factor x d]		R min. [factor x d]		R min. [factor x d]
from/to [°C]	[m]	< 10 m	≥ 10 m	< 10 m	≥ 10 m	< 10 m	≥ 10 m
-25 / -15		12.5	15	13.5	16	14.5	17
-15 / +70	≤ 50	10	12.5	11	13.5	12	14.5
+70 / +80		12.5	15	13.5	16	14.5	17

* Higher number of double strokes possible - please ask for your individual calculation.

Certificates and standards

Unsure whether it fits?

36 month guarantee

You can expect that from us.

CFRIP®

50% time reduction when stripping.

Buy cable with connector?

Are you looking for a harnessed cable? If so, visit our readycable® shop.

	Number of cores and conductor nominal cross section
	Copper index kg/km
	core group 1 Number of cores & nom. cross section
	Stranding type

	Min. bend radius, e-chain (factor)
	Min. bend radius, e-chain
	Min. bend radius, flexibel (factor)
	Min. bend radius, flexible
	Min. bend radius, fixed (factor)
	Min. bend radius, fixed
	Temperature e-chain®
	Temperature, flexible
	Temperature, fixed
	v max. unsupported
	v max. gliding
	a max.
	Class travel length
	Class torsion

	Conductor
	Core insulation
	Core structure
	Overall shield
	Outer jacket
	Jacket colour

	UV resistance
	Oil resistance
	Silicone-free
	Halogen-free
	EAC
	REACH
	Lead free
	Clean room
	CE
	UL/CSA
	UL verified
	Flame retardant
	DNV-GL
	NFPA
	Offshore
	UKCA

chainflex® CF240.PUR data cable

chainflex® CF240.PUR data cable

General properties

Dimensions

Dynamic information

Cable structure

Electrical information

Properties and approvals
