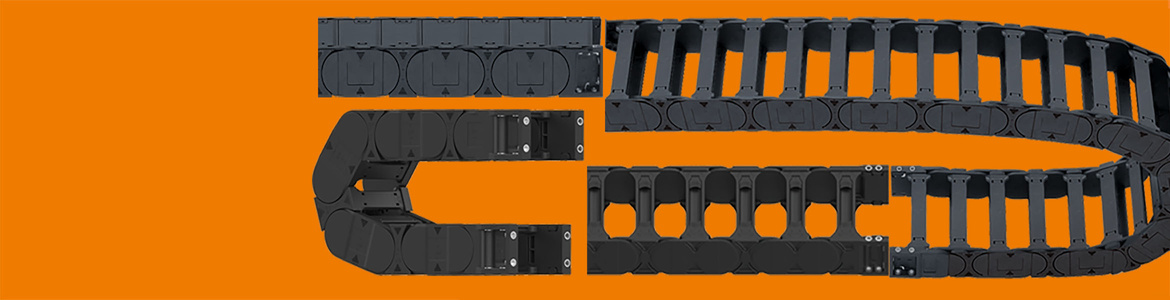

Large cable chains for high loads & heavy duty applications

Opening and closing completely without tools

• Inner height: 34 to 82mm
• 40% less assembly time: crossbar with fastening straps for opening and closing without tools
• 100% higher pull-out strength: positive-locking crossbar
• 10% less weight: material recesses for optimised weight and stability
• 20% more fill weight
• 17dB(A) quieter

Reduce cost, time and weight

• Inner heights: 31 to 64 mm
• Crossbar openable from both sides along inner and outer radius
• Quiet operation due to integrated brakes
• Undercut design for the best possible lateral stability
• Can be closely adapted to the application
• Best possible value for money
• 30% less weight and 80% faster installation than comparable series
• Double stop-dog system and large pin/bore connection for high level of force absorption

A series for virtually every application

• Inner heights: 21 to 350 mm
• Crossbars removable along the inner and outer radius
• For especially demanding applications
• Undercut design for the best possible lateral stability
• Double stop-dog system and large pin/bore connection for high level of force absorption
• High push force on long travels and for large unsupported lengths
• Noise-reducing brake and optional noise dampers
• Quiet operation due to integrated brakes

Large inner heights combined with low own weight

• Inner heights: 56 to 112 mm
• Crossbars removable along the inner and outer radius
• Reduced thickness of the side sections and thinner crossbars

Swarf-repellent chains

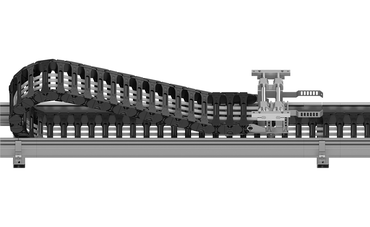

Cable chain for long-travel gliding applications up to 1,000 meters

• Energy chain that move without problems on travels of up to 1,000 metres and more
• Speed: 10 m/s
• Fill weight: 50 kg/m
• Energy chains can be guided smoothly and with low friction in long travels through guide troughs and enclosures
• Suitable for both indoor and outdoor use
• Successfully for used for more than 20 years in over 30, 000 gliding long travels
