twisterband
...7000°* rotate...
Standard delivery includes the base plates, which are a component of the twisterband module!
twisterband: Compact, modular, economical
1. Base plate with strain relief
2. twisterband segment
3. Four sizes available
4. Some parts available with interior separation
5. Limited length compensation possible
6. Openable with film hinge or openable "easy" design
7. Base plate with strain relief
Rotations in a confined space - 20 times around its own axis With the very compact igus® twisterband, rotations can be achieved cost-effectively, with low wear and low maintenance, even in a confined space and therefore reliably guide energy, data and media.
Five sizes available
7,000°* and more horizontal rotary movement and up to 3,000° in the vertical installation position°
Rotary speeds up to 360°/s possible
Compact, modular and light
Bands can be shortened as required
Minimum installation spaces, fits tightly around the rotary axis
Can be used reliably in various installation positions (horizontal, vertical, upside down)
Cost-effective
Easy filling
Ideal in combination with igus® chainflex® cables for rotary movements in very limited installation spaces
Industries:
Cable reels, Machine tools, Robots (robot arms, 1/6 axis, scara robots), Leisure rides, medical equipment, radar and telescope equipment, aerospace, test, measurement, handling, lifting and installation equipment, wind turbines (e.g. blade adjustment); wherever rotary unions are used
Integrable hinge: Simple access and quick filling with cables and hoses (TB20.44.18, TB30)
Maximum angle of rotation as a rule of thumb: Hinge for each 180° = 360° more rotation
An axis is to be centrally installed for angles of rotation from 1500° rotating and horizontal
Minimum installation space
Compact, modular and cost effective- horizontal: 7,000° and more possible, vertical up to 3000° rotary movement in the smallest space
Usable in various installation orientations: shown here: horizontal 7,000°* and more rotary motion in confined spaces. Limited length compensation possible
Rotary movements up to 7,000° (depending on installation orientation, vertical: up to 3,000°, horizontal: 7,000° and more possible)
Possible for confined spaces
Rotary speeds up to 180°/s possible
Five sizes available
Some parts available with interior separation (depending on the series)
Very easy to fill, with openable integral hinges or "easy" design system (according to the series)
Limited length compensation possible
For higher fill weights, twisterchain
For 3D movements triflex® R
RBR versions for even higher fill weights
If a lubrication-free and maintenance-free slewing ring bearing for continuous rotary movement is required
iglidur® slewing ring bearings
If you require shielded cables. Please get in contact with us.
|
Part No.: |
|
| Rotation angle [°]: | |
| Part No. | Inner width | Internal height | X1 Interior installation space |
X2 Exterior installation space |
R min. |
R max. |
d1 MAX. | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
 TB12.23.9.3.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 217.07 EUR |  |
| TB12.23.9.4.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 244.83 EUR | |
| TB12.23.9.5.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 272.58 EUR | |
| TB12.23.9.6.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 300.34 EUR | |
| TB12.23.9.7.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 328.09 EUR | |
| TB12.23.9.8.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 355.84 EUR | |
| TB12.23.9.9.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 383.57 EUR | |
| TB12.23.9.10.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 411.33 EUR | |
| TB12.23.9.11.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 439.08 EUR | |
| TB12.23.9.12.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 466.84 EUR | |
| TB12.23.9.13.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 494.59 EUR | |
| TB12.23.9.14.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 522.34 EUR | |
| TB12.23.9.15.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 550.10 EUR | |
| TB12.23.9.16.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 577.85 EUR | |
| TB12.23.9.17.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 605.61 EUR | |
| TB12.23.9.18.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 633.36 EUR | |
| TB12.23.9.19.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 661.09 EUR | |
| TB12.23.9.20.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 688.84 EUR | |
| TB12.23.9.21.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 716.60 EUR | |
| TB12.23.9.22.01.0 |
23 | 9 | 40 | 140 | 24 | 35 | 7 | 744.35 EUR | |
| More about selected part: | |||||||||
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||||
|
Part No.: |
|
| Rotation angle [°]: | |
| Part No. | Inner width | Internal height | X1 Interior installation space |
X2 Exterior installation space |
R min. |
R max. |
d1 MAX. | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| TB20.44.12.3.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 265.19 EUR | |
| TB20.44.12.4.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 293.94 EUR | |
| TB20.44.12.5.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 322.70 EUR | |
| TB20.44.12.6.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 351.44 EUR | |
| TB20.44.12.7.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 380.18 EUR | |
| TB20.44.12.8.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 408.95 EUR | |
| TB20.44.12.9.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 437.69 EUR | |
| TB20.44.12.10.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 466.46 EUR | |
| TB20.44.12.11.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 495.20 EUR | |
| TB20.44.12.12.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 523.96 EUR | |
| TB20.44.12.13.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 552.70 EUR | |
| TB20.44.12.14.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 581.44 EUR | |
| TB20.44.12.15.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 610.21 EUR | |
| TB20.44.12.16.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 638.95 EUR | |
| TB20.44.12.17.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 667.72 EUR | |
| TB20.44.12.18.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 696.46 EUR | |
| TB20.44.12.19.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 725.22 EUR | |
| TB20.44.12.20.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 753.97 EUR | |
| TB20.44.12.21.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 782.71 EUR | |
| TB20.44.12.22.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 811.47 EUR | |
| TB20.44.12.23.01.0 |
44 | 12 | 50 | 220 | 34 | 57 | 9 | 840.21 EUR | |
| More about selected part: | |||||||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||||
|
Part No.: |
|
| Rotation angle [°]: | |
| Part No. | Inner width | Internal height | X1 Interior installation space |
X2 Exterior installation space |
R min. |
R max. |
d1 MAX. | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| TB20.44.18.3.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 276.71 EUR | |
| TB20.44.18.4.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 306.71 EUR | |
| TB20.44.18.5.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 336.72 EUR | |
| TB20.44.18.6.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 366.72 EUR | |
| TB20.44.18.7.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 396.73 EUR | |
| TB20.44.18.8.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 426.74 EUR | |
| TB20.44.18.9.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 456.72 EUR | |
| TB20.44.18.10.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 486.72 EUR | |
| TB20.44.18.11.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 516.73 EUR | |
| TB20.44.18.12.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 546.73 EUR | |
| TB20.44.18.13.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 576.74 EUR | |
| TB20.44.18.14.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 606.74 EUR | |
| TB20.44.18.15.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 636.73 EUR | |
| TB20.44.18.16.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 666.73 EUR | |
| TB20.44.18.17.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 696.74 EUR | |
| TB20.44.18.18.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 726.74 EUR | |
| TB20.44.18.19.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 756.75 EUR | |
| TB20.44.18.20.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 786.75 EUR | |
| TB20.44.18.21.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 816.76 EUR | |
| TB20.44.18.22.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 846.74 EUR | |
| TB20.44.18.23.01.0 |
44 | 18 | 50 | 220 | 34 | 57 | 14 | 876.75 EUR | |
| More about selected part: | |||||||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||||
|
Part No.: |
|
| Rotation angle [°]: | |
| Part No. | Inner width | Internal height | X1 Interior installation space |
X2 Exterior installation space |
R min. |
R max. |
d1 MAX. | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| TB29.27.22.3.01.0 |
27 | 22 | 200 | 320 | 69 | 82 | 17 | 249.51 EUR | |
| TB29.27.22.4.01.0 |
27 | 22 | 200 | 320 | 69 | 82 | 17 | 282.88 EUR | |
| TB29.27.22.5.01.0 |
27 | 22 | 200 | 320 | 69 | 82 | 17 | 316.28 EUR | |
| TB29.27.22.6.01.0 |
27 | 22 | 200 | 320 | 69 | 82 | 17 | 349.65 EUR | |
| More about selected part: | |||||||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||||
|
Part No.: |
|
| Rotation angle [°]: | |
| Part No. | Inner width | Internal height | X1 Interior installation space |
X2 Exterior installation space |
R min. |
R max. |
d1 MAX. | ||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||
| TB30.75.22.7.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 365.81 EUR | |
| TB30.75.22.8.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 398.04 EUR | |
| TB30.75.22.9.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 430.28 EUR | |
| TB30.75.22.10.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 462.51 EUR | |
| TB30.75.22.11.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 494.74 EUR | |
| TB30.75.22.12.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 526.95 EUR | |
| TB30.75.22.13.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 559.18 EUR | |
| TB30.75.22.14.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 591.41 EUR | |
| TB30.75.22.15.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 623.65 EUR | |
| TB30.75.22.16.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 655.85 EUR | |
| TB30.75.22.17.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 688.08 EUR | |
| TB30.75.22.18.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 720.32 EUR | |
| TB30.75.22.19.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 752.55 EUR | |
| TB30.75.22.20.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | 784.78 EUR | |
| TB30.75.22.21.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | Upon request | |
| TB30.75.22.22.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | Upon request | |
| TB30.75.22.23.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | Upon request | |
| TB30.75.22.24.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | Upon request | |
| TB30.75.22.25.01.0 |
75 | 22 | 90 | 330 | 44 | 77 | 17 | Upon request | |
| More about selected part: | |||||||||
|
3D-CAD
Sample request
PDF
Quote request
Price list
myCatalog
|
|||||||||

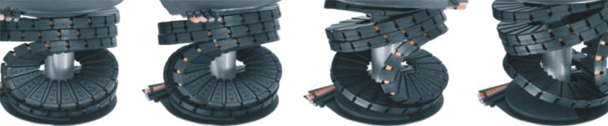

Example of a twisterband
*horizontal installation type
