RBR e-chain® Cable Chains: Optimized for High-Speed Rotary Applications

For years, igus® has been innovating customized systems for circular movements using energy chains, known as 'rotating systems'. These systems enable energy supply to rotating assemblies in applications such as machine tools and bucket wheel excavators. To expedite solutions for these applications, the motion plastics specialist has developed a standard range of rotary modules and offers a complete, installation-friendly kit system for fast rotating applications.

The standard for circular motion

  • Rotation angles up to 540° (on one level)
  • Rotation angles of 900° are possible with the igus® multi-rotation modules
  • Maximum rotation angle in minimal installation space
  • Rotation speed of up to 360°/s
  • Lighter and more compact than static guide troughs
  • Minimum displacement forces and maximum service life
  • Modular construction with standardised mounting options
  • Integrated strain relief and cable guidance directly in the guide trough
  • Determine rotating energy supply quickly and reliably with the CAD configurator

The new standard for circular motions

Teaser SRM

SRM: Steel Rotation Module

Complete set with rotation angle: up to 380°
To the complete set
Teaser SRM-L

SRM-L: Steel Rotation Module Light

New development with up to 40% less weight
Make a product enquiry
Polymer Rotation Module

PRM: Polymer Rotation Module

Complete set with rotation angle: up to 360°
To the complete set

Special solutions for special applications

Static rotating energy supply

Static rotating energy supply, one-piece

Maximum rotation angle 400°
For static rotating energy supply
Teaser SRM-V

SRM-V: Steel Rotation Module
Vertical

Vertical installation up to 2,000mm outer diameter
Make a product enquiry
Teaser PRM-V

PRM-V: Polymer Rotation Module Vertical

Vertical installation up to 500mm outer diameter
Make a product enquiry

Your options for igus® guide troughs

Depending on the application in question, the e-chains® glide on surfaces made of plastic, stainless steel or galvanised steel and are guided by special channels in a predefined circular movement.

Rotating energy supply with brackets

With consoles

Flexible attachment to your structure
Rotating energy supply with cover

With roof

Weather and UV protection are easily integrated
Rotating energy supply with integrated guide

Integrated guidance

Controlled, low-wear guidance of the e-chain® within your application

Rotating energy supply with tube troughs

Tube trough

Open structure providing protection from dirt with additional weight-reducing features

Space-saving with reverse e-chains®

Reverse e-chains®

Space-saving: symmetrical separation filling and the system

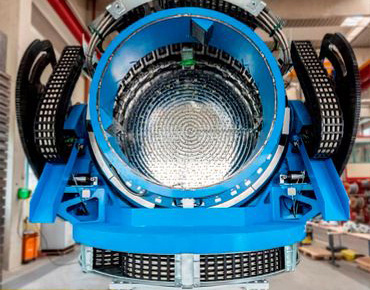

Energy Chain Successfully Used in Rotary Applications

What does RBR or "reverse bend radius" mean?

"RBR" also know as "Reverse Bend Radius" means that the e-chain® can bend in two directions. Versions with "Reverse Bend Radius" can be produced for many igus® e-chain®. The "Reverse Bend Radius" does not have to be identical to the normal "BR" (bend radius) of an energy chain. In this way, a wide variety of circular movements can be solved. Rotation angles of up to 900° have been realised to date.
**Tip: Solve your current design quickly, simply and easily by simply enquiring about your specific application with your igus® specialist for rotating energy supply. We will provide you with the correct design, the simplified 3D model and a concrete offer with prices and delivery times.

What does "MRM" mean?

"MRM" stands for multi-rotation module and is effectively a multi-level RBR system. With a simple igus® rotation module (such as a standard RBR energy chain), a rotation angle of up to 540° can be achieved, depending on the energy chain size. Each additional module extends the angle of rotation by up to 360°. A simple stop-dog system carries the system's upper layer according to a defined angle of rotation. This technology means that only one control system is required for both layers.
MRM module with two levels

Suitable products and tools

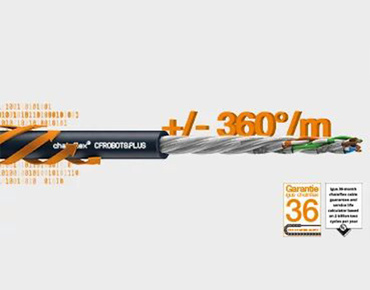

chainflex cables for Reverse Bend Radius applications

Fail-safe cables for rotary guide systems

Largest range with 1,354 cables types for data, bus and hybrid systems, control system and drive. Specially developed for moving application in e-chains®.
To chainflex® cables

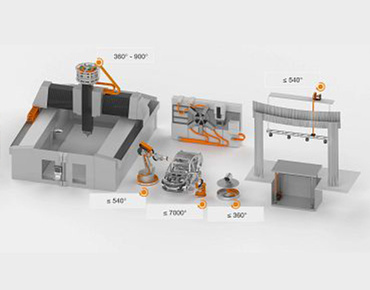

Rotating energy supply systems for various applications

Energy chains for circular and spiral movements

With the help of our configurator for circular movement in the CAD area, you can configure an energy chain in advance suitable for your application data.
To rotating energy supplies

Further information on RBR energy chain

Product experts in conversation

FREE Engineering service

Need a customized rotating energy supply? Our experts are ready to assist you
Ask experts
White paper on rotating energy supply

Download Free design tips

Ten valuable tips for the correct guide trough for circular modules, should you want to design it yourself.
Download white paper
Reverse Bend Radius configurator

Online configurator

Configurator for circular movement in the CAD area, simply configure the energy chain to suit the application.
Go to the configurator
