Energy supply systems and bearings for wind turbines

Strong temperature fluctuations, high wind loads, turbulence, sandstorms: wind turbines must function reliably in harsh weather conditions. igus® offers you a large selection of high-performance plastic components for wind turbines and their production facilities, transport and assembly. These include robust, compact energy chains and highly flexible cables for torsional movements, which increase the reliability of the system in towers, azimuth systems and rotor blade adjustments, for example. Wear-resistant bar stock and heavy-duty plain bearings, which do not require external lubricants or maintenance thanks to incorporated solid lubricants, are ideal for use in rotor blade adjustment and braking systems.

Areas of use

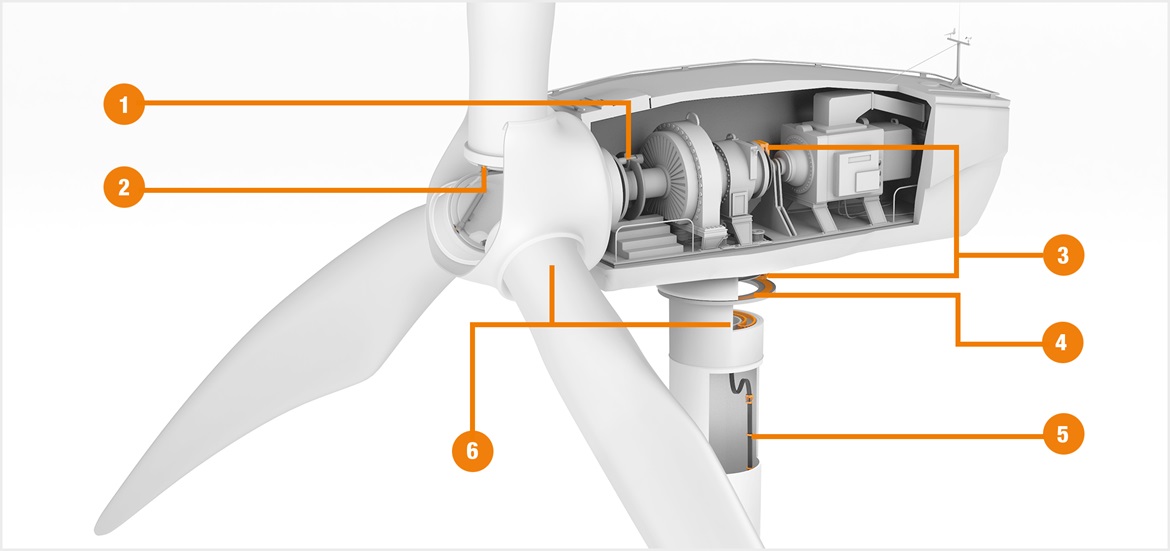

3D cutaway of a wind turbine with marked components and a drive unit at the rotor.

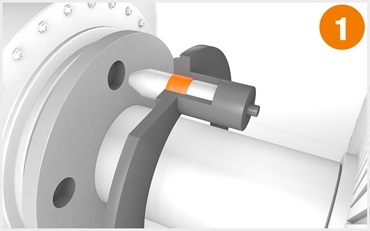

Wind turbine rotor lock with retaining pin and orange marking.

Rotorlock systems

igutex® Plain bearing TX1

Up to 200 MPa static and 140 MPa dynamic
Wear-resistant and dimensionally stable

More about TX1 in the shop

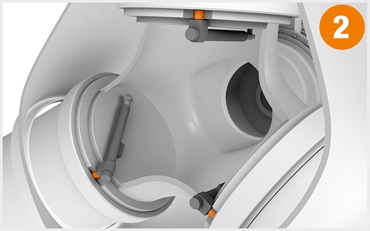

Rotor pitch system of a wind turbine with mechanical components inside.

Pitch actuators

igutex® Plain bearing TX1

Up to 200 MPa static and 140 MPa dynamic
Wear-resistant and dimensionally stable

More about TX1 in the shop

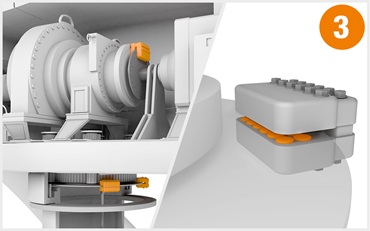

Azimuth brake for wind turbine with section view and detail of the braking elements.

Azimuth and rotor brakes

Customised elements made of iglidur® X or F

Moulded or injection moulded parts
High wear and pressure resistance

iglidur X plates

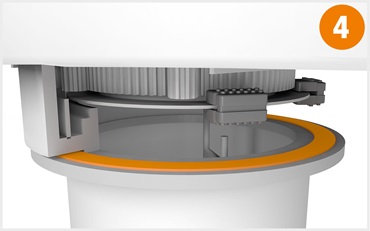

Azimuth sliding plates in a wind turbine bearing with the friction surface marked.

Azimuth adjustment

bar stock-sliding plate iglidur® W300

Extremely high wear resistance
Low coefficient of friction
Insensitive to dirt

More about iglidur W300 plates

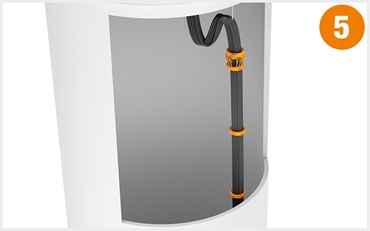

e-loop guide in the wind turbine housing with cables.

Energy supply to the nacelle

Modular energy chain system e-loop®

Modular system, easy to open
Protection against impacts thanks to robust PU outer body

Find out more about the e-loop

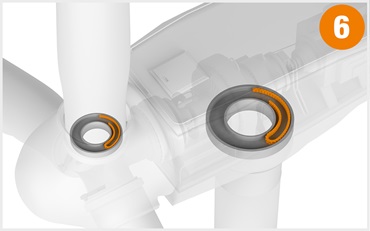

Wind energy cable carrier at a rotor joint with two marked bearings.

Rotor blade and azimuth adjustment

rotating energy supply Reverse bend radius

For high filling weights and confined spaces
Rotation angle up to 900°

More about Reverse Bend Radius modules

Other products for wind turbines

Torsionable cables

Cable for cable carrier with shown torsional movement.

For torsion applications with +/- 180° at 1 m cable length
4-year guarantee

chainflex torsion cables

twisterband

Rotary movements up to 7,000°
Rotation speeds up to 180°/s
Modular and easy to fill

Find out more about the twisterband

multi-axis energy chain

triflex R energy chain system with guided cables.

Defined bend radius
+/- 10° torsion per chain link
High tensile force absorption

Discover triflex® R now

2-component high-load plain bearing

iglidur Q3E plain bearing bushing made of black plastic.

Suitable for extreme loads
cost-effective due to injection moulding

More information about iglidur Q3E

Successful in use

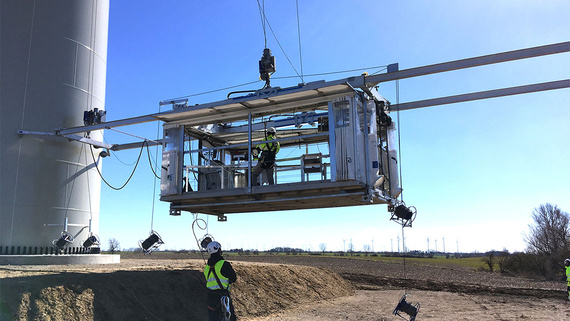

Maintenance platform for wind turbines

A start-up company from Brandenburg has developed a mobile maintenance platform for the rotors of wind turbines that allows repair work to be carried out in almost any weather and at any time of day. On board are chainflex® cable, energy chain and iglidur® plain bearings.

Learn more

Suspended test structure with e-chains and bearings on a wind turbine tower, above a construction site.

Learn more

Tested for real use in the test laboratory

All products are tested for wear and load-bearing capacity under real conditions in the igus® test laboratory, the largest in the industry. The results are fed into our tools for calculating service life and enable precise predictions to be made about durability.

Upon request, igus® also carries out customer tests to test the use of the products under very individual conditions.
