drylin® N - Low profile linear guide system NK-02-80

You are now leaving igus.sg

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!

Part No.	Max. rail lengths	a	C4	A3	C5=C6	h	h1	K1*	ly	lz	Rail weight	Price / m
NS-01-80	4000	80	150	40	25	99.5	11	1.5	M4	271200	2900	1140	76.22 SGD
NS-01-80-AR	4000	80	150	0	20	99.5	11	1.5		27120	2900	1140	91.46 SGD
NS-01-80-UNGEBOHRT	4000	80	0	0			11	1.5		27120	2900	1140	68.23 SGD

Order no.	Weight of carriage
NW-02-80	100	14.41 SGD
NW-02-80-LLY	100	14.41 SGD
NW-02-80-LLZ	100	14.41 SGD
NW-02-80-LLYZ	100	14.41 SGD


NW-02-80	12	57	80	68	56	45	M4	100
NW-02-80-LLY	12	57	80	68	56	45	M4	100
NW-02-80-LLZ	12	57	80	68	56	45	M4	100
NW-02-80-LLYZ	12	57	80	68	56	45	M4	100

Order no.	Weight of carriage
NW-12-80	100	14.41 SGD
NW-12-80-LLY	100	14.41 SGD
NW-12-80-LLZ	100	14.41 SGD
NW-12-80-LLYZ	100	14.41 SGD


NW-12-80	12	57	83	68	56	45	M4	100
NW-12-80-LLY	12	57	83	68	56	45	M4	100
NW-12-80-LLZ	12	57	83	68	56	45	M4	100
NW-12-80-LLYZ	12	57	83	68	56	45	M4	100

Country/Region

By selecting your country you will be shown local offers and information.

Language settings

Select preferred language:

Page not found

The selected page is not available for . Would you like to switch to the country's homepage instead?

Cancel

Okay

Shopping Cart

The selected article has been added to your shopping cart.
From here you can initiate enquiries or orders.

Continue purchasing

Change to shopping cart

Shopping Cart

It was not possible to add the selected article to the shopping cart.

Okay

Please choose your delivery location

drylin® N - Low profile linear guide system NK-02-80

More about selected part:

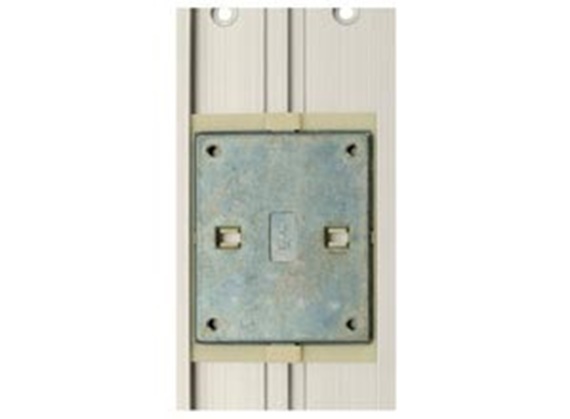

Version 02 - standard with threaded hole:

More about selected part:

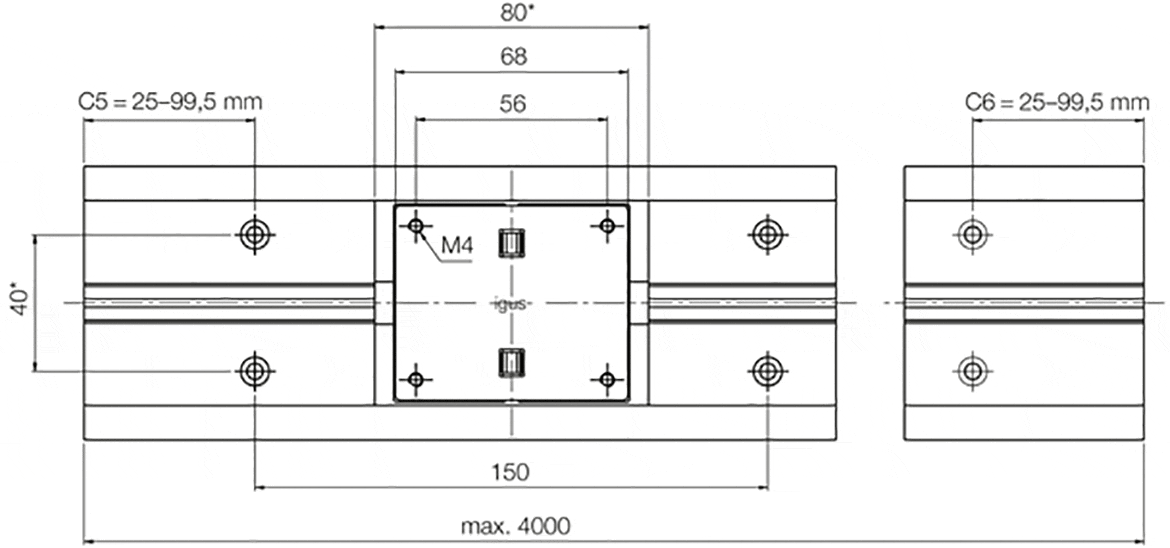

Version 02: Dimensions [mm] - guide carriages

More about selected part:

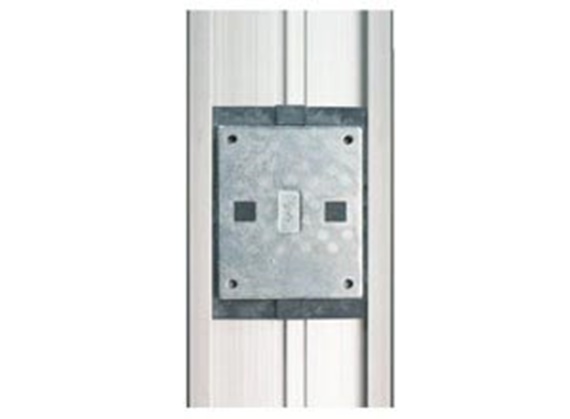

Version 12 - coated with threaded hole:

More about selected part:

Version 12: Dimensions [mm] - guide carriages

More about selected part:

Ordering of a complete system

Configuration in few steps:

Hint:

drylin® NK – complete set

Step 1

Static load capacity and moments of inertia of an area

Part No.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Rail weight	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-80	4000	80	150	40	25	99.5	11	1.5	M4	271200	2900	1140	76.22 SGD
NS-01-80-AR	4000	80	150	0	20	99.5	11	1.5		27120	2900	1140	91.46 SGD
NS-01-80-UNGEBOHRT	4000	80	0	0			11	1.5		27120	2900	1140	68.23 SGD

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-02-80	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLY	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLZ	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLYZ	12	57	80	68	56	45	0	M4	0	0	100
